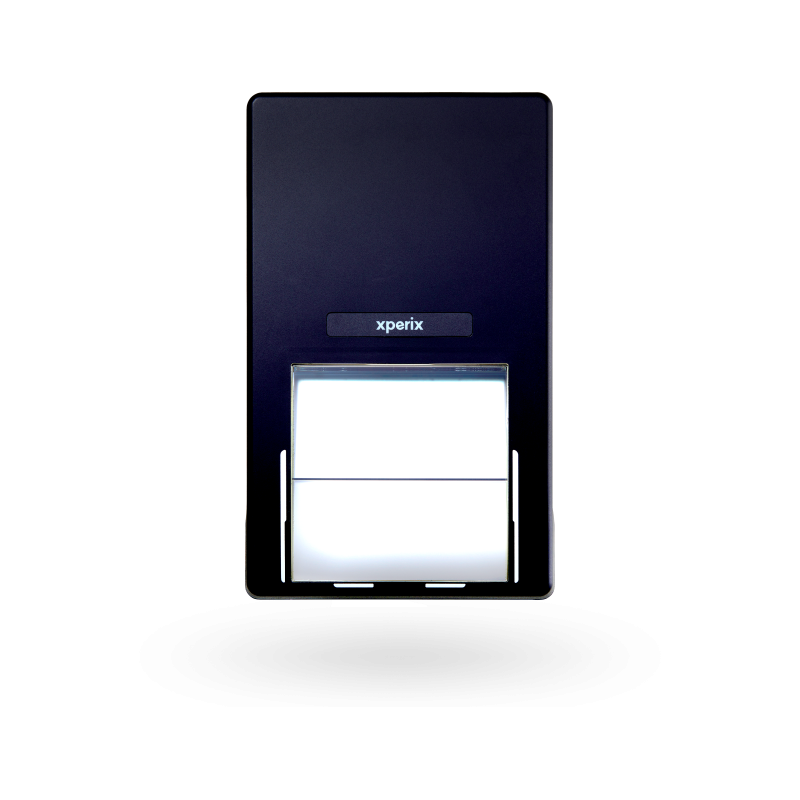

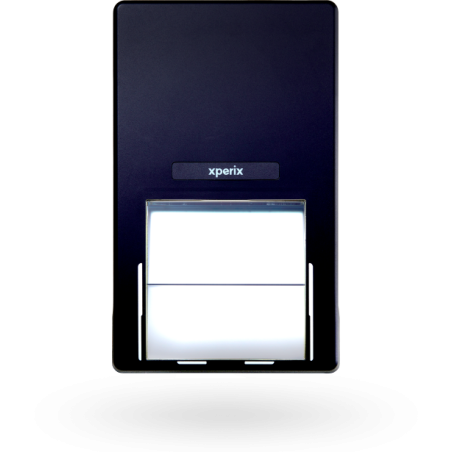

Xperix Realscan-FC

Xperix RealScan-FC is an advanced all-in-one professional biometric scanner designed for capturing fingerprints and palm prints, including flat, rolled, full palm, and writer’s palm impressions. The device meets FBI Appendix F and Appendix P requirements, features AI-based Live Finger Detection, delivers high image quality, and offers IP64-rated protection, making it an excellent choice for criminal identification, border control, and advanced identity management systems. With support for Windows, Linux, and Android, as well as easy integration into both mobile and desktop solutions, it provides a versatile platform for professional biometric deployments.

Sensor & Image
Capture: Flat(Four/Two/Single) and Rolled(Single) fingers, Upper and Lower palms, Writer's palms
Sensor Type​-Optical
Resolution-500 ppi
Grayscale-8-bit, 256 levels

Image Size (WxL)
Palm print: 2500 x 2500 pixels
Four finger Slap: 1600 x 1500 pixels
Single flat / Roll: 800 x 750 pixels

Template Format​-Xperix, ISO 19794-2, ANSI 378 by Image SDK
Supported Image Formats​-RAW, BMP, WSQ, JPEG2000, ISO19794-4
Encryption-AES-256 by Image SDK
FBI / Image Certifications​-Identification Flats (Appendix F & Appendix P), Live-Scan(Tenprint) System (Appendix F), Live-Scan(Palm) System (Appendix P)

OS Support​
Windows 10 or higher 32/64bit,
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit,
Android 5.0 or higher

Weight 5.35 kg
Platen Size (WxL)​ 131.2 mm x 130.2 mm
Sensing Area (WxL) 127 mm x 127 mm
Dimensions (WxLxH)​ 193 mm x 315 mm x 150 mm

Surface Protection​: Optic Glass (Scratch free)
Ingress Protection​: IP64
Operating Temperature​: From 0 °C to 55 °C
Operating Humidity​: 10% - 90%, non-condensing

Interface​-USB 3.2 Gen 1, USB-C
Power Source​-USB Host / Adapter
USB Voltage Level-5.0V ±10% / 12 VDC ±10%

Live Finger Detection(LFD)​-Supported (AI-based)
Sound-Speaker
LED Indicator-Not Supported
Kensington lock-Not Supported

Certification
FBI, CE, FCC, KC, RoHS, WEEE, REACH, WHQL, UL
