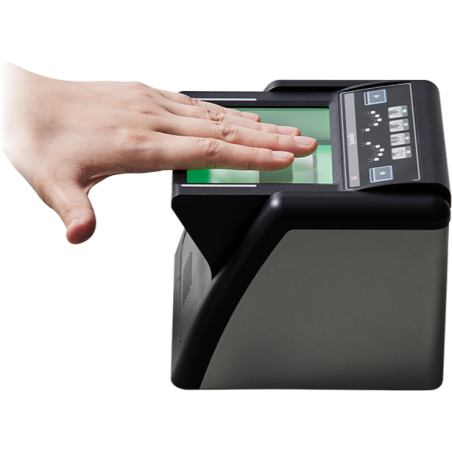

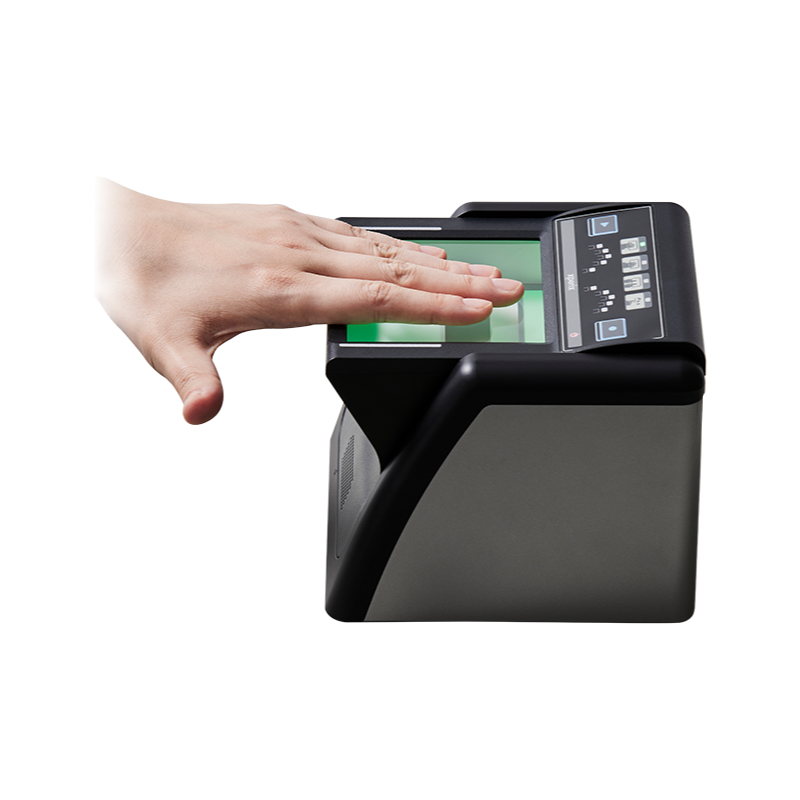

Xperix RealScan-G10

Xperix RealScan-G10 is a professional FAP60 biometric scanner designed for fast and accurate capture of four-finger, two-finger, single-finger, and rolled fingerprints. The device is certified to FBI Appendix F and Mobile ID FAP60 standards, uses AI-based Live Finger Detection to identify spoofing attempts, and delivers high image quality for a wide range of identification applications. With IP54-rated protection, a built-in speaker, LED indicator, and support for Windows, Linux, and Android, it is well suited for enrollment, identification, and administrative systems.

Sensor & Image
Capture-Flat(Four/Two/Single) and Rolled(Single) fingers
Sensor Type​-Optical
Resolution-500 ppi
Grayscale-8-bit, 256 levels

Image Size (WxL)
Four finger slap: 1600 x 1500 pixels
Single flat / Roll: 800 x 750 pixels

Template Format​-Xperix-ISO 19794-2, ANSI 378 by Image SDK
Supported Image Formats​-RAW, BMP, WSQ, JPEG2000, ISO19794-4
Encryption-AES-256 by Image SDK
FBI / Image Certifications​
- Identification Flats (Appendix F), Live-Scan(Tenprint) System (Appendix F),
- Mobile ID FAP 60 (Appendix F)

OS Support​
Windows 10 or higher 32/64bit,
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit,
Android 5.0 or higher

Weight 1.8 kg
Platen Size (WxL)​ 89 mm x 80 mm
Sensing Area (WxL) 81.3 mm x 76.2 mm
Dimensions (WxLxH)​ 152 mm x 152 mm x 127 mm

Durability
Surface Protection​: Optic Glass (Scratch free)
Ingress Protection​: IP54 (Sealed between bezel and sensor surface)
Operating Temperature​: From -10 °C to 55 °C
Operating Humidity​: 10% - 90%, non-condensing

Power & Connectors
Interface​-USB 2.0 High Speed
Power Source​-USB Host
USB Voltage Level-5.0V ±10%

General
Live Finger Detection(LFD)​-Supported (by AI-based, ISO/IEC 30107-3 Compliant)
Sound-Speaker
LED Indicator-Supported
Kensington lock-Supported​

Certification
FBI, CE, FCC, KC, RoHS, USB-IF, UL, WHQL, BIS, IEC62471, STQC, WEEE, REACH, PAD Level 1 & 2 by BixeLab
