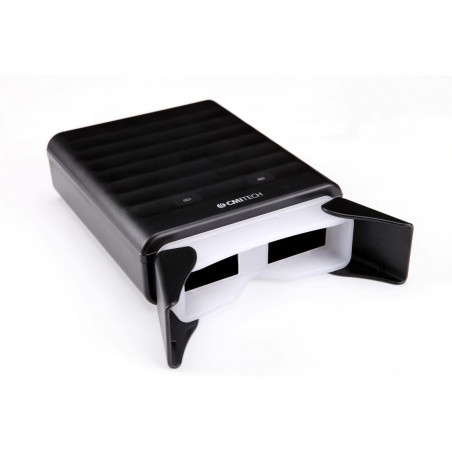

CMI Tech BMT-20

The BMT-20 is a binocular system for simultaneous double iris capture designed for recruitment applications, especially very large-scale programs.
The instructions are easy for both the operator and the subject. The user is simply prompted to raise the BMT-20 to their eyes as if they were binoculars by touching the strap on their forehead to the object just above their eyebrows. After positioning the device, they are asked to center their eyes in the interior mirror, keeping them wide open. The system does all the work of finding the irises and capturing biometric samples. The BMT-20 is extremely efficient: when the subject's eyes are centered, images of the iris are captured within.
The BMT-20 meets the stringent IP64 requirements which means it is highly resistant to contamination with even the smallest airborne particles such as dust and dirt. The system also includes an internal white LED which is used to narrow the pupil diameter of the examined person to a constant level, thus improving the quality of the registration image even in poor lighting conditions.

Dimensions - 219 x 161 x 58 mm (8.6 x 6.3 x 2.3 inches)
Weight - 680 g (1.5 lbs)
MTF / spatial resolution - Exceeds 4.0 lp / mm @> 60% contrast
Pixel resolution - 18.4 to 20 pixels / mm
Iris image pixel resolution - 640 x 480 pixels
Image output - Meets or exceeds ISO 19794-6
Optical path distance - 350 to 380 mm
Depth of field - 30 mm (1.2 inches)
Inter-pupillary distance covered - 40 to 90mm (1.6 to 3.5 inches)
Time of capture - Typically around 0.5 second, f rom time of head placement
IR illumination for iris imaging - Dual LED: wavelengths of 850 nm nominal (~ 60%); and 750 nm nominal (~ 40%)
Internal LED for pupil contraction - Broadband visible (white)
External LED indications for operator assisted positioning - Red: Device position is too high Blue: Device position is too low Green: Device position is OK White: Image capture in progress
Operating temperature range - 0 to 50 ̊C
Humidity - 10 to 90% RH, non-condensing
Eye safety standard - IEC 62471, IEC 60825-1
Durability - IP64 intrusion prevention standard
Interface - USB 2.0 High Speed
Power - USB 2.0 (500 mA at 5V), No additional power required
PC hardware requirements - PC / xX86 platform: Intel® Atom ™ or above processor, ARM: Cortex A9 quad core processor
OS compatibility - Windows 7, 8, 8.1 and 10, both 32 and 64 bit versionsLinux Ubuntu 12.04, 14.04 and 16.04 LTSAndroid 4.0 and above
Other certifications - CE, FCC, USB-IF, India STQC, RoHS, WHQL
