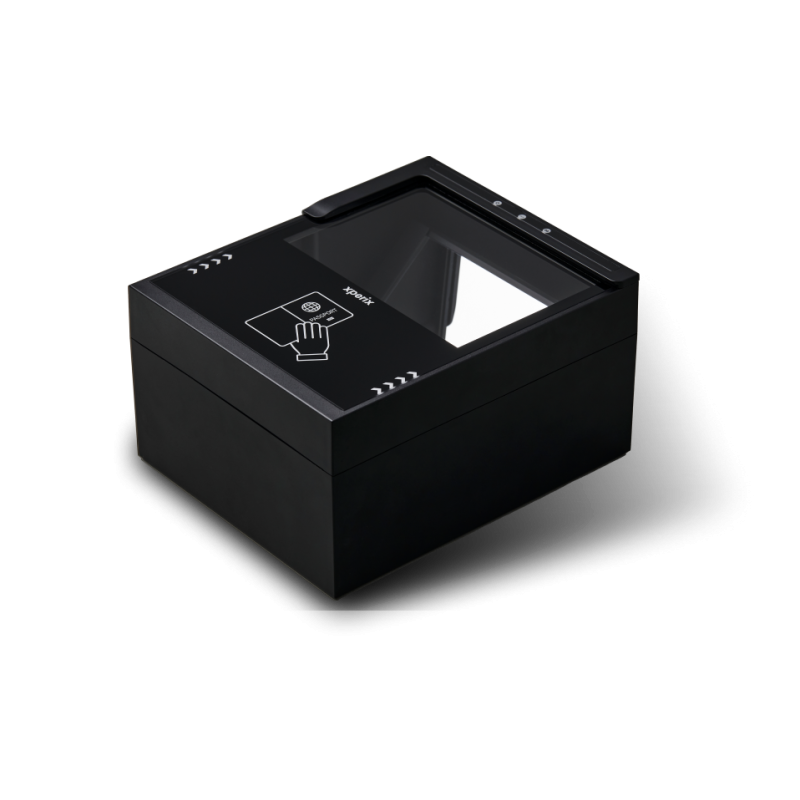

Xperix RealPass-N

Xperix RealPass-N

Full-page & Multiple Document Reader

Xperix RealPass-N is a professional full-page document reader designed for fast and convenient scanning of passports, ID cards, driver’s licenses, and 1D/2D barcodes. It supports one-step scanning, automatically detects document placement, and delivers high-quality 500 ppi image capture. Depending on the version, it can also read contactless RFID chips compliant with ISO 14443, making it well suited for administrative, border control, financial, and commercial applications.

Sensor & Image

Capture:
RPN-B - Passport, ID Card, Driver licence, etc.
RPN-F - Passport, ID Card, Driver licence, etc.
Sensor Type​: Optical
Resolution: 500 ppi
Image Color Depth: 24 bits / pixels
Image Size (WxL): Full size 2560 x 1772
Illuminations: White, IR(880 nm), UV(365 nm)
Supported Image Formats: BMP, JPG, PNG, JPEG2000, TIFF

Barcode (S/W) - RPN-B:
1D: Code 11, 39, 39 Extended, 93, 128 / UCC 128 / 2 of 5 interleaved / EAN 8, 13 / UPC A, E / Add 2, 52D: PDF417, Data Matrix, QR Code, Micro QR Code, Aztec
Barcode (S/W) - RPN-F:
BMP, JPG, PNG, JPEG2000, TIFF, 1D: Code 11, 39, 39 Extended, 93, 128 / UCC 128 / 2 of 5 interleaved / EAN 8, 13 / UPC A, E / Add 2, 52D: PDF417, Data Matrix, QR Code, Micro QR Code, Aztec

RFID - RPN-B: Not Supported
RFID - RPN-F: ISO 14443 A/B Type (up to 848Kbps) including BAC, PA, AA, EAC, PACE and SAC, PC/SC support

OS Support​
Windows 10 or higher 32/64bit,
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit

Weight & Dimensions
Weight 1 kg RPN-B / 1.01 kg RPN-F
Platen Size (WxL)​ 130 mm x 90 mm
Sensing Area (WxL) 130 mm x 90 mm
Dimensions (WxLxH)​ 155 x 190 x 99.8 (103.8 with guide)

Durability
Surface Protection​: Tempered Glass (Scratch free)
Ingress Protection​: IP54 (Sealed between bezel and capture surface)
Operating Temperature​: From -10 °C to 55 °C
Operating Humidity​: 0% - 90%, non-condensing

Certification:
CB, CE, FCC, KC, RoHS, IEC 62471, WEEE, REACH, WHQL

Power & Connectors

Interface:
RPN-B: USB 2.0 High Speed, Integrated USB 3.0 Hub 2 Port
RPN-F: USB 2.0 High Speed

Power Source: USB Host / Adapter
USB Voltage Level: 5.0V ±10% / 12 VDC ±10%
Sound: Buzzer
LED Indicator: Supported
Kensington lock: Supported
Smart Sleep Mode: Not Supported

Reading Capabilities

OCR:
CAO DOC 9303(ISO-7510) compliant travel documents(2 & 3-line MRZ)
ISO-18013 driving licenses(1-line MRZ), Korean ID Card(National ID Card, Driver license)
Barcode 1D:
BC412, Codabar, Code 11, Code 32, Code 39, Code 93, Code 128
GS1 DataBar (RSS), Hong Kong 2 of 5, IATA 2 of 5, Interleaved 2 of 5, Plessey
Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Straight 2 of 5, Telepen, Trioptic, UPC/EAN/JAN
Barcode 2D:
RPN-B: PDF 417, QR Code, QR Code Model 1, MicroQR Code, Aztec, DataMatrix, Grid Matrix, Dot Code, Han Xin, Maxicode, Aztec
RPN-F: PDF 417, QR Code, QR Code Model 1, MicroQR Code, Aztec, DataMatrix, Grid Matrix, Dot Code, Han Xin, Maxicode

Contactless smartcard reader:
RPN-B: Not Supported
RPN-F: Dual Antenna, ISO 14443(13.56MHz) Type-A & Type-B up to 848Kbps PC/SC

e-Document security protocols & PKI:
RPN-B: Not Supported
RPN-F:
EAC(Extended Access Control) as defined in TR-03110 up to version 2.10
Supported security protocols:
- BAC(Basic Access Control)
- BAP(Basic Access Protection)
- AA(Active Authentication)
- PACE(Password Authenticated Connection Establishment) with MRZ or CAN
- PACE-CAM(Password Authenticated Connection Establishment with Chip Authentication Mapping)
- CA(Chip Authentication) - EAC 1.11, EAC 2
- TA(Terminal Authentication) - EAC 1.11, EAC 2
- SAC(Supplemental Access Control)
Inspection system PKI integration for terminal authentication:
- Internal database with CV certificates and private keys for the IS certificates
- TCC(Terminal Control Center) integration as defined in TR-03129 for external terminal authentication
PKI integration for passive authentication:
- Internal database with X509 certificates
- TCC(Terminal Control Center) integration as defined in TR-03129 for the external verification of the document signer certificate
