Xperix BM-Slim 3

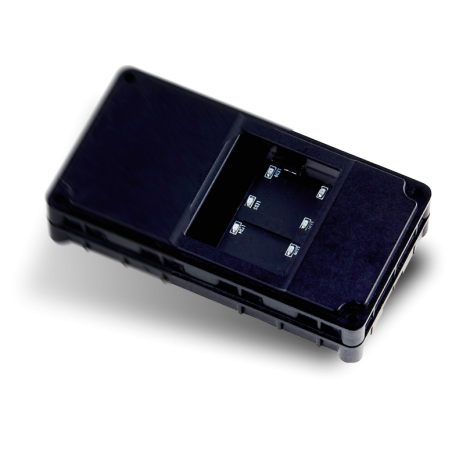

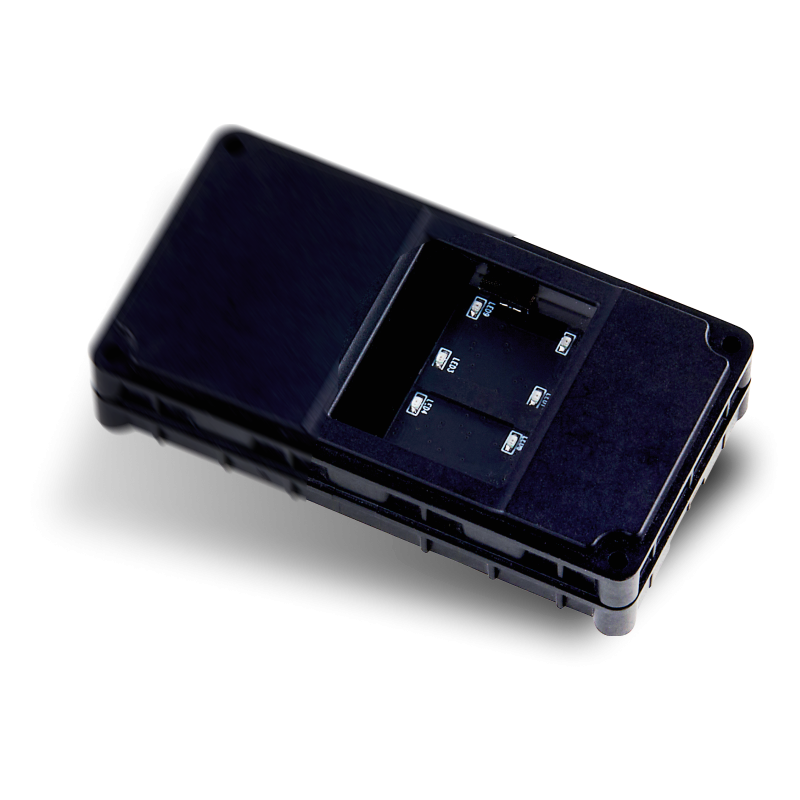

Xperix BM-Slim 3 is an ultra-slim FAP30 fingerprint scanner module designed for integration with modern devices and identification systems. It offers fast image capture, standalone operation thanks to a 1.0 GHz processor, support for Windows, Linux, and Android, as well as advanced security features including data encryption and AI-based Live Finger Detection.
Xperix BM-Slim 3 is an ultra-slim FAP30 fingerprint scanner module designed for integration with modern devices and identification systems. It offers fast image capture, standalone operation thanks to a 1.0 GHz processor, support for Windows, Linux, and Android, as well as advanced security features including data encryption and AI-based Live Finger Detection. Its compact 15 mm-high design, IP65 protection rating, and FBI PIV / Mobile ID FAP30 certifications make it an excellent solution for professional biometric applications.
Sensor & Image
Capture-Flat(Single) fingers
Sensor Type-Optical
Resolution-500 ppi
Grayscale-8-bit, 256 levels
Image Size (WxL)-400 x 500 pixels
Template Format-Xperix, ISO19794-2, ANSI 378
Supported Image Formats-RAW, BMP, ISO 19794-4, WSQ(FBI certified)
Encryption-Device:
-AES-256, RSA 1024bit, ECC 521bit
-SDK: AES-256
FBI / Image Certifications
-Mobile ID FAP 30 (PIV-071006), PIV Single Finger (PIV-071006), FIPS
OS Support
Windows 10 or higher 32/64bit,
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit,
Android 5.0 or higher (USB Host),
OS/Platform Independent, Stand-alone Operation
Weight-48.6 g
Platen Size (WxL)-21.5 mm x 26. 5mm
Sensing Area (WxL)-20.3 mm x 25.4 mm
Dimensions (WxLxH)-67.5 mm x 36 mm x 15 mm
Durability
Surface Protection: Optic Glass (Scratch free)
Ingress Protection: IP65 (Sealed between bezel and sensor surface)
Operating Temperature: From -10 °C to 55 °C
Operating Humidity: 0% - 90%, non-condensing
Power & Connectors
Interface-USB 2.0 High Speed
Power Source-USB Host
USB Voltage Level-5.0V ±10%
General
Live Finger Detection(LFD): Supported (by AI-based)
Plug & Play: Supported (by HID Protocol)
Stand-alone Mode: Supported
Multi Dynamic Range(MDR): Supported
Certification
FBI, CE, FCC, KC, RoHS, USB-IF, CB, IEC 62471, WEEE, REACH, BIS, WHQL
