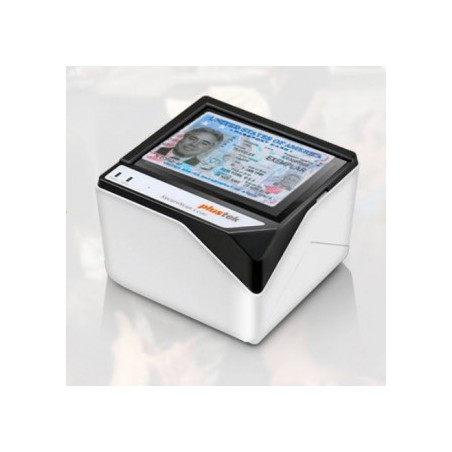

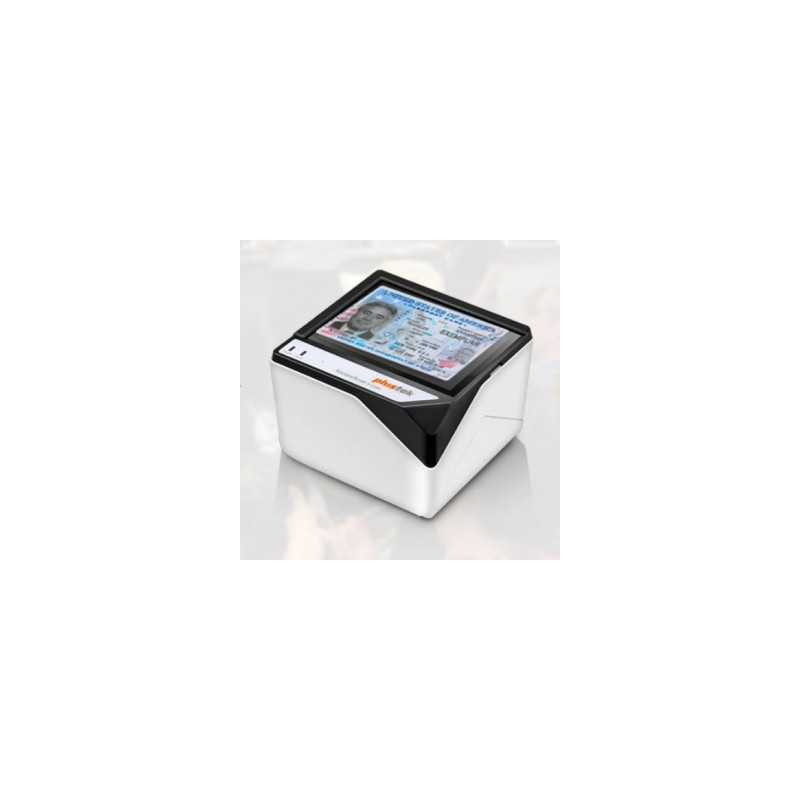

Plustek SecureScan X-Cube

Plustek SecureScan X-Cube is a compact identity document scanner designed for fast and convenient operation in registration points, access control environments, and wherever efficient data capture from documents is required. The device enables scanning of identity cards, driver’s licenses, passports, health insurance cards, and other standard identification cards, supporting daily workflows in environments where quick identity verification matters.

SecureScan X-Cube was developed as a solution that is both easy to use and fast in operation. According to the manufacturer, scanning one side of a document takes less than 2 seconds, and the process does not require pressing buttons or performing additional actions on screen. This makes the device well suited for check-in processes, reception desks, customer service points, financial institutions, and administrative applications.

An important feature of the X-Cube model is its ability to work with visible light, ultraviolet, and infrared imaging. The use of UV and IR helps reveal selected security features of documents, such as hidden protection elements, supporting document authenticity checks and improving the security of the identification process.

The device complies with the ICAO Doc 9303 TD1 format and also supports documents in A8 size, making it suitable for capturing and archiving data from different types of identity and travel documents. Its compact design and USB power supply make deployment easy both at operator workstations and in self-service solutions or kiosks. The manufacturer also highlights SDK availability, which facilitates integration with identity management systems and custom applications.

Plustek SecureScan X-Cube can be used in border and immigration control, hospitality, visitor and access management, banking, financial institutions, automotive, and telecommunications sectors. It is a practical solution for organizations that need to combine speed, ease of use, and additional support for document authenticity verification.

Technology: CMOS
Light source: White LED / IR LED / UV LED
Optical resolution: 5 megapixels
Focus: Fixed
Color depth: Color: 24-bit input
Operation button: Automatic detection sensors
Scanning area (W x L): Maximum: 88 x 54 mm
Supported paper size (W x L): Maximum: 88 x 54 mm
Power requirements: USB powered: 5V DC
Operation button: Automatic detection sensors
Interface: USB 2.0 Type Mini-B
Weight: 0.42 kg
Dimensions (W x L x H): 107.5 x 107.5 x 84 mm
Operating system: Windows 7 / 8 / 8.1 / 10 / 11

Computer hardware requirements: CPU 2.0 GHz or faster [1]
[1] Recommended Windows system: Intel® Core™ i5 2.8 GHz quad-core processor or faster
Minimum 4 GB RAM (recommended: 8 GB or more)
6 GB of free disk space for software installation
Available USB 2.0 port
Display resolution 1024 x 768 or higher

Included software: Plustek SecureScan, Plustek SecureScan Manager
