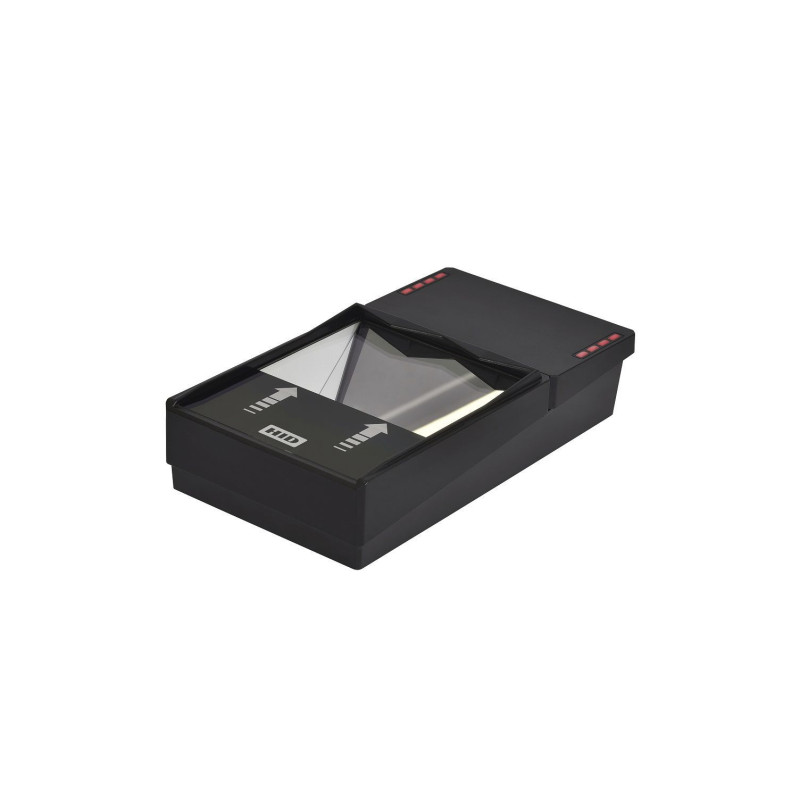

HID MDR750

HID MDR750
Multi-document reader (ID scanner and boarding pass reader)

Part of HID's portfolio of ticket readers and ID document readers, the MDR750 multi-document reader streamlines credential reading by combining machine readable zone (MRZ), barcode scanning and optional radio-frequency identification (RFID) reading into a single, user-friendly device. By consolidating these features, the MDR750 not only functions as a powerful passport scanner and boarding gate reader, but also reduces equipment costs and saves valuable workspace.

Key Features:
All-In-One Functionality — Eliminates the need for multiple devices by integrating the ability to read ICAO 9303 compliant MRZ documents, 1D/2D barcodes and optional ISO 14443 RFID chips into one compact flatbed unit, making it an ideal passport scanner and boarding pass reader
User-Centric Design — Features a flatbed design that allows effortless scanning of passports, IDs and barcoded tickets in any orientation
Clear Feedback — Visual and audio feedback gives operators confidence that data has been successfully captured. Twin runway lights show read progress while a loud beeper confirms completion.
Efficient Processing Built-In — A powerful integrated processor enables MDR750 to capture data rapidly from MRZ, barcodes and RFID chips making it an efficient passport scanner and boarding pass reader
Supports Biometric Enrollment — The device can read and display RFID DG2 digital facial images from e-passport chips for enhanced verification

Key Applications:
Travel and Transportation — Airport check-in, pre-security checks
Government — Voter registration, border control, biometric enrollment
Hospitality — Guest check-in, age verification
Banking and Finance — Know Your Customer (KYC) processes
Retail — Customer onboarding, tax refund processing


OCR (Optical Character Recognition)
Standard OCR fonts: OCR-B
Machine readable passports (MRP): 2 lines of 44 characters
Machine readable visas (MRV): 2 lines of 44 characters, 2 lines of 36 characters
Travel documents: 2 lines of 36 characters, 3 lines of 30 characters

Barcode Symbologies Read
1D symbologies: Code 128, Code 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Code 39, EAN
2D symbologies: IATA resolution 792, QR, Aztec, PDF417 and Datamatrix codes
Media types: Smartphone, tablet and smartwatch displays and paper documents and tickets

Contactless RFID Reading (Optional)
Supported media: ISO14443 type A and B cards (Java cards); max baud 424K (extendable to 848K)
MIFARE UL, Classic 1K, Classic 4K, UL-C, MIFARE Plus; max baud 106K
Operating frequency: 13.56 MHz
Operating distance: 20 mm

Communications & Host
Host interface: USB
Secure MQTT connection to cloud services

Protocols Supported
Amadeus ACUS
ARINC iMuse & VMuse
Embross CUPPS
SABRE EGR
SITA Airport Connect
Materna CUSE
Secure IoT MQTT

Dimensions
6 x 10 x 2.6 in (143 x 259 x 66 mm)
