Reiner SCT tanJack deluxe

Reiner SCT tanJack deluxe

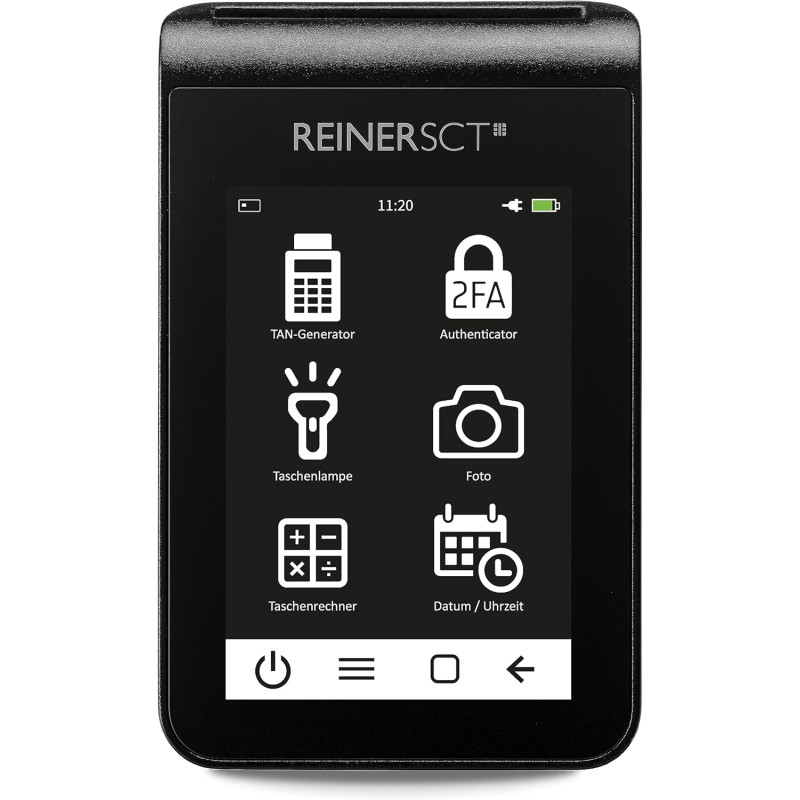

The tanJack® deluxe combines state-of-the-art technology with maximum security by serving as a first-class TAN generator for online banking and as a premium authenticator for two-factor authentication (2FA). With its intuitive touch and color display, it works in a similar way to a smartphone, but remains offline and therefore protected from online attacks.

The tanJack® deluxe offers maximum security and outstanding user-friendliness for your online banking. Thanks to chipTAN QR and Sm@rt-TAN photo, the device captures graphic codes at lightning speed, regardless of position and end device. All transaction data and TANs are clearly shown on the large display. With the integrated card slot, you can securely generate TANs with your bank or SparkassenCard.

In addition, the tanJack® deluxe also supports two-factor authentication (2FA) by securely storing electronic keys and generating highly accurate TOTP one-time passwords every 30 seconds – a method expressly recommended by the German Federal Office for Information Security (BSI).

Highly secure for private and professional use
Additional PIN protection
For smartphone, tablet, notebook or desktop
Including charging station


TAN Generator
Supported Procedures
• chipTAN QR, chipTAN manual, Sm@rt-TAN photo and Sm@rt-TAN manual
• QR code according to DK chipTAN QR / HHDQR
• Color matrix code according to DK HHDFM
• Manual procedure according to chipTAN
Supported Versions:
HHD/QR+FM: 1.3.2, 1.4 / 1.5
chipTAN: 1.1, 1.2 with AMS

Supported Card Types: Cards with contact chip according to ISO/IEC 7816
Supported Chip Cards: SECCOS bank cards (DK) from version 6.x with TAN application
Supported Voltages for Chip Cards: ISO 7816-3 Type B (3.0 V)
Chip Card Protocol: T=1
Contact Unit: 8 precision gold-plated contacts – ISO placement

TOTP Generator
Supported Procedures: OATH-TOTP according to RFC 6238
Supported TOTP Algorithms: SHA 1, SHA 256, SHA 512
Key Storage: In secured hardware chip
Number of TOTP Accounts: 100
PIN Protection: Yes, 5–12 digits

Display and Camera
Display: 3.5-inch TFT color display with capacitive touch, 320 × 480 pixels
Display area: 73 × 49 mm
Camera: CMOS color camera with OmniPixel3-HSTM technology, viewing angle: 57°
Additional Functions
Flashlight: white LED light with timer and SOS function
Photo function: photo capture with built-in camera, start image display, permanent image display
Calculator: standard / scientific
Date / Time: permanent display of time, date, and temperature

Hardware Features
Real-Time Clock (RTC):
High-precision quartz real-time clock. Average deviation < 1 ppm due to automatic calibration during time synchronization. Reference temperature: 25 °C
Key Storage:
In persistent memory. Keys remain stored even when the battery is empty
Power On / Off:
On: touch the upper right side for 1 second, insert card, or place in charging station
Off: touch the upper right side for 5 seconds, via function icon on the bottom left of the display, or automatically after 15–90 seconds (adjustable) when not in the charging station

Power Supply: Lithium-ion battery 420 mAh / 1.52 Wh
Card Slot: Yes
Housing Colors: Black
Special Colors / Custom Printing: On request; minimum order quantity applies

Dimensions:
tanJack® deluxe (L × W × H): approx. 112 × 70.5 × 13.5 mm
tanJack® deluxe charging station (W × D × H): approx. 70.5 × 54.5 × 43 mm
Packaging (L × W × H): approx. 201 × 149 × 47 mm

Weight (without / with packaging): Approx. 220 g / 330 g
Ambient Temperature (Storage / Operation): -20 °C to 50 °C / 0 °C to 45 °C
Permissible Humidity: Max. 78%; non-condensing
Vibration: 10–75 Hz; 10 m/s² (ISO/IEC 60068-2-6)
Drop Test: 1 m (DIN EN 60068-2-31)
Compliance: CE, WEEE, RoHS2, BattG
