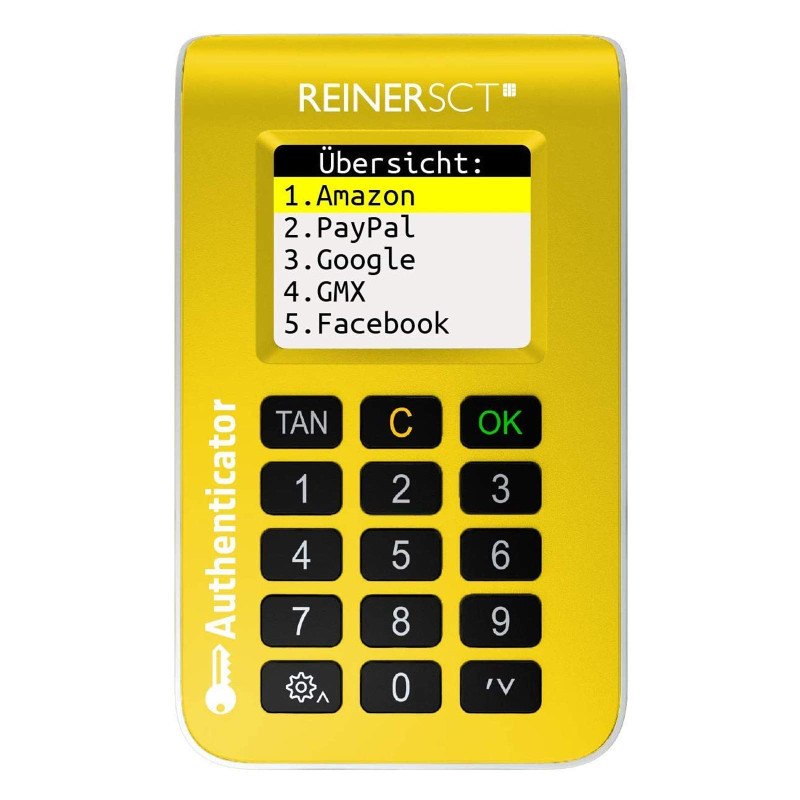

REINER SCT Authenticator

REINER SCT Authenticator

Simply entering a user name and password when logging in is no longer secure. Almost all leading online platforms therefore offer the option of registering with an additional component.
This so-called two-factor authentication (2FA) protects your user account against misuse and identity theft to a high degree, even if the user name and password have been spied out.
Secure your accounts without time limits
Camera for importing TOTP keys
More secure than authenticator apps
Change time zone

Key storage: In the secure hardware chip
Supported procedures: OATH-TOTP according to RFC 6238
Supported TOTP algorithms: SHA 1, SHA 256, SHA 512

Power supply: 3x alkaline-manganese batteries, size: AAA / IEC LR03, replaceable
Housing colors: White / yellow, other colors on request
Dimensions (LxWxH): 102 x 62.5 x 19 mm
Weight of individual device (without packaging/with packaging): 80 g / 200 g

Real-time clock (RTC): Highly accurate quartz real time clock. Average deviation < 1 ppm due to automatic calibration during time synchronization. Reference temperature: 25 °C
Buffering real-time clock: Buffering of the real-time clock for approx. 1 minute when changing the battery.
Key storage: In persistent storage. The TOTP keys and accounts remain stored even without battery power.

Scope of delivery: REINER SCT Authenticator with batteries 3x AAA and quick start guide


Category and Function
Device Category: Hardware TOTP Generator
Supported Methods: OATH-TOTP according to RFC 6238
Supported TOTP Algorithms: SHA 1, SHA 256, SHA 512
Key Storage: On a secure hardware chip
Number of TOTP Accounts: 60
Time Synchronization: reiner-sct. com/sync, unidirectional via encrypted QR code
Menu Functions: Accounts, Reader (Identification), Settings (incl. battery status),
User PIN

Keyboard, Camera, and Display
Numeric Keys / Function Keys / Special Keys: 10 / 3 / 2 rubberized keys
Camera: CMOS color camera with OmniPixel3-HSTM technology, 57° field of view
Operating Indicator: TFT color display
Display: 1.77-inch TFT color display, 128 x 160 pixels
Display Cutout: 36 x 29 mm

Hardware Features
Real-Time Clock (RTC) High-precision quartz real-time clock. Average deviation < 1 ppm due to automatic calibration during time synchronization. Reference temperature: 25 °C
Real-Time Clock Buffering The real-time clock is buffered for approximately 1 minute during battery changes.
Key Storage In persistent memory. TOTP keys and accounts remain stored even without battery power.
Power supply: 3 x AAA / IEC LR03 alkaline manganese batteries, replaceable
Battery life: approx. 5 years (calculation based on 500 TOTPs per year; actual lifespan depends on usage duration and type, as well as environmental conditions)
Card slot: none
Standard housing colors: yellow / white
Special colors, custom printing: available upon request, minimum order quantity applies
Product dimensions (L x W x H): approx. 102 x 62.5 x 19 mm
Packaging dimensions (L x W x H): approx. 201 x 149 x 47 mm
Weight (without packaging / with packaging): approx. 80 g / 200 g
Ambient temperature: storage / operation -10 °C - 50 °C / 0 °C - 50 °C
Permissible humidity: max. 90%; non-condensing
Vibration: 10 - 75 Hz 10 m/s² (ISO/IEC 60068-2-6)
Drop test 1 m (DIN EN 60068-2-31)
Compliant with CE, WEEE, RoHS2, BattG
