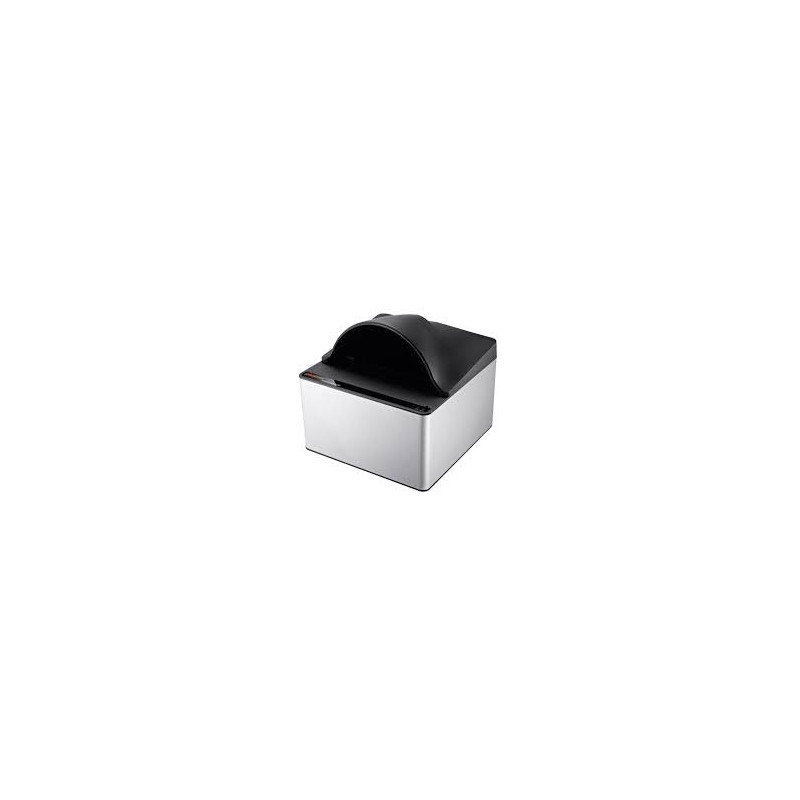

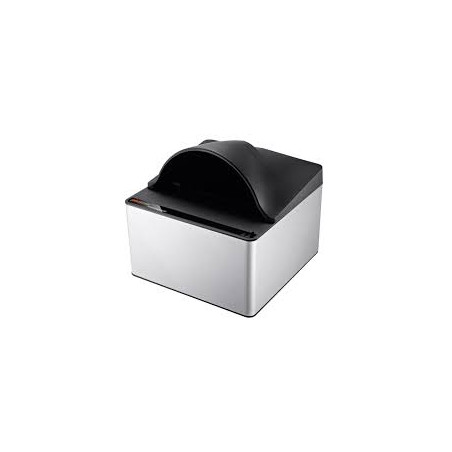

Plustek SecureScan X200

SecureScan X200 is part of Plustek's extensive range of passport scanners.

Advantages:
- possibility of machine reading data of the reading zone and visual zone with 3 light sources,
- visual inspection zones (VIZ) require adjustment - it is recommended to contact the manufacturer for adjustment and pricing,
- SecureScan X200 (RFID) detects and reads information encoded on contactless chips in ePassports and electronic identity documents.
- X200 can help the operator detect forged or counterfeit documents,
- X200 is ideal for integration with automatic border security kiosks, e-gates, etc.,
- compliance with the ICAO Doc 9303 standard regarding machine-readable travel documents,
- support for scanning TD1/TD2/MRP/MRV documents,
- RFID document support: ISO 14443(A/B), ISO 7816 (including American passports),
- available SDK and API,

The following SDKs are available to integrate SecureScan X Series into your application
- Passport/MRZ SDK
- Driver's licenses and SDK state identification cards
- RFID and OCR library SDK
- Image Scanning and Enhancement SDK

Custom SDK licensing terms vary by region and may incur appropriate fees based on your specific read recognition needs.

Specification - SecureScan X200

Technology: CMOS
Light Source: White LED / IR LED / UV LED
Optical resolution: 5 megapixels
focus: Fixed
Color depth
- Color: 24 bits input/24 bits output
- IR: 24 bits input / 8 bits output
- UV: 24 bits input/24 bits output
Scan Speed: Approximately 2 seconds (Color Mode, Capture full page of passport image)
Scan Area (W x D): Maximum: 127 x 95 mm (5" x 3.74")
Acceptable paper size (W x L): Maximum: 125 x 88 mm (4.92" x 3.46")
Action button: Dual auto detection sensors
Power supply: 24 Vdc/ 0.75 A
Connection
- USB 2.0
- USB 2.0 x 2 port (extension)
Weight: 1.7 Kgs (3.78 Lbs)
Dimensions (width x length x height)
- Without cover: 200 x 200 x 119 mm (7.87" x 7.87" x 4.69")
- With cover: 200 x 200 x 190 mm (7.87" x 7.87" x 7.48")

Operating system: Windows 7/8/8.1/10/11
Computer hardware requirements:
CPU 2.0 GHz or faster
Recommended Windows: Intel® Core™ i5 2.8 GHz processor with 4 cores or faster
Minimum 4 GB RAM (recommended: 8 GB or more)
6 GB of disk space for program installation
A free USB 2.0 port
Display dimensions 1024x768 or larger

Software included
ePassport (for demonstration purposes only)
(SDK available on request - contact the manufacturer recommended)

Contactless IC Reader:
- Recommended by ICAO in the ICAO Doc 9303 supplement, LDS 1.7
- ISO 14443 Type-A and Type-B for 13.56 MHz, all standardized frequencies up to 848 Kbps
- PA, AA, BAC, EAC (V1.11)
RFID Data download speed: About 3 seconds (Reading time depends on the RFID tag, operating system and the amount of data stored in the chip)
