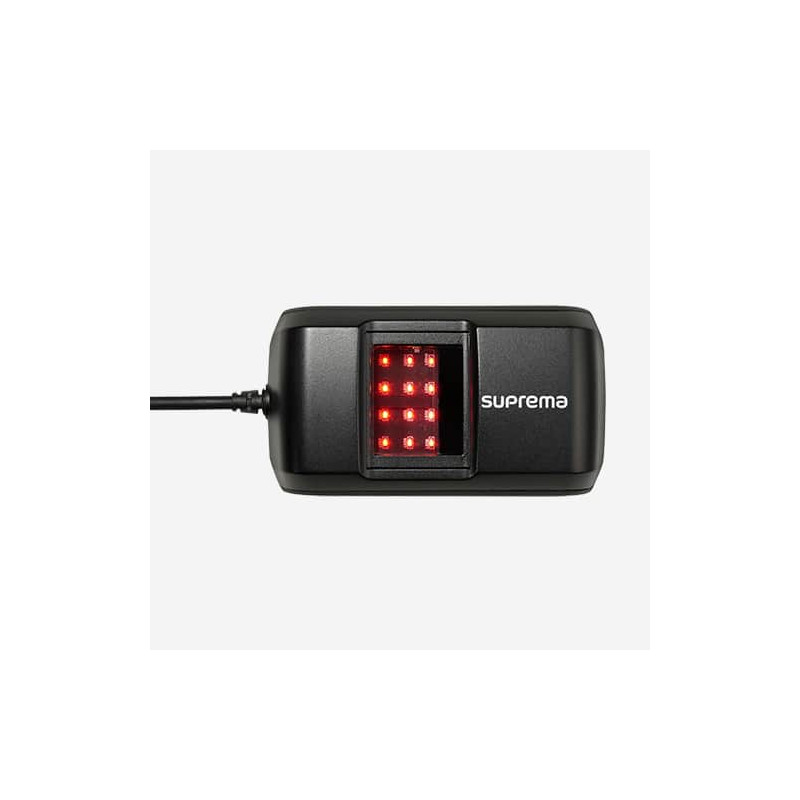

Xperix BioMini Slim 3

Xperix BioMini Slim 3 is a compact and advanced fingerprint scanner that combines high image quality, fast performance, and enhanced security. Its slim housing, measuring just 20 mm in height, large scanning area, and AI-based live finger detection make it an excellent choice for access control systems, user registration, and identification applications. The device also offers on-device data encryption, IP65-rated protection, and support for Windows, Linux, and Android.

Sensor & Image

Capture: Flat(Single) fingers
Sensor Type​: Optical
Resolution: 500 ppi
Grayscale: 8-bit, 256 levels
Image Size (WxL)​: 400 x 500 pixels​
Template Format​: Xperix, ISO19794-2, ANSI 378
Supported Image Formats​: RAW, BMP, ISO 19794-4, WSQ(FBI certified)
Encryption
- Device: AES-256, RSA 1024bit, ECC 521bit
​- SDK: AES-256
FBI / Image Certifications​:
-Mobile ID FAP 30 (PIV-071006), PIV Single Finger (PIV-071006), FIPS

System

OS Support​:
Windows 10 or higher 32/64bit,
Linux Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit,
Android 5.0 or higher (USB Host),
OS/Platform Independent, Stand-alone Operation

Weight & Dimensions

Weight 111 g
Platen Size (WxL)​ 21.5 mm x 26.5 mm​
Sensing Area (WxL) 20.3 mm x 25.4 mm​
Dimensions (WxLxH)​ 83 mm x 45.9 mm x 20 mm

Durability

Surface Protection​: Optic Glass (Scratch free)​
Ingress Protection​: IP65 (Sealed between bezel and sensor surface)
Operating Temperature​: From -10 °C to 55 °C
Operating Humidity​: 0% - 90%, non-condensing

Power & Connectors

Interface​: USB 2.0 High Speed​
Power Source​: USB Host​
USB Voltage Level: 5.0V ±10%​

General

Certification
FBI, CE, FCC, KC, RoHS, USB-IF, CB, IEC 62471, WEEE, REACH, BIS, WHQL

Card
Contact Smart Card - Not Supported
Contactless Smart Card - Not Supported
SAM Slot - Not Supported

Security
TPM - Not Supported
