Integrated Biometrics Columbo

Integrated Biometrics Columbo
FAP 30, PIV, FBI-Certified, Single-Print Scanner

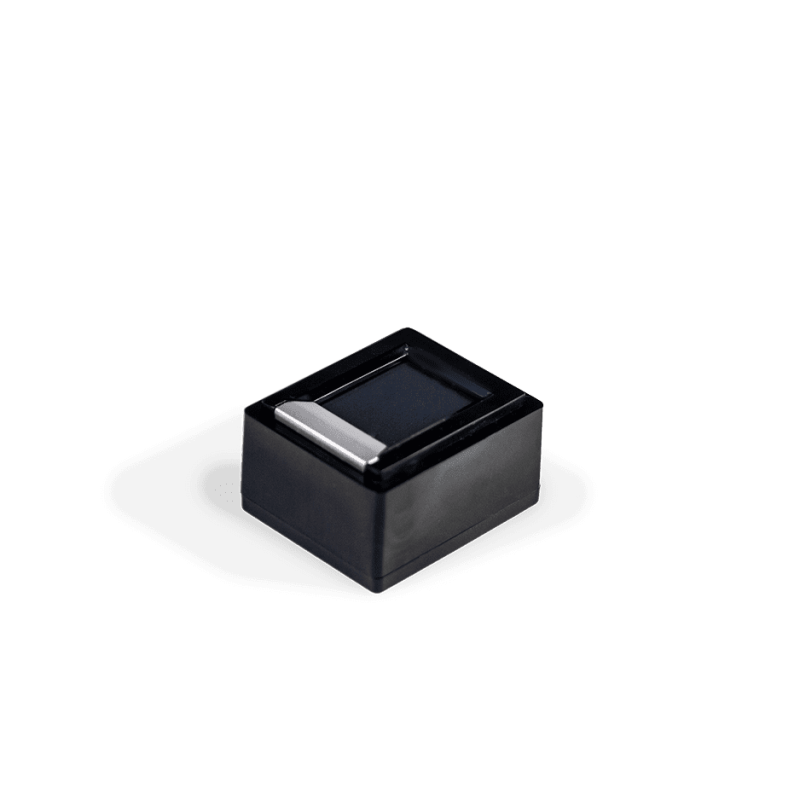

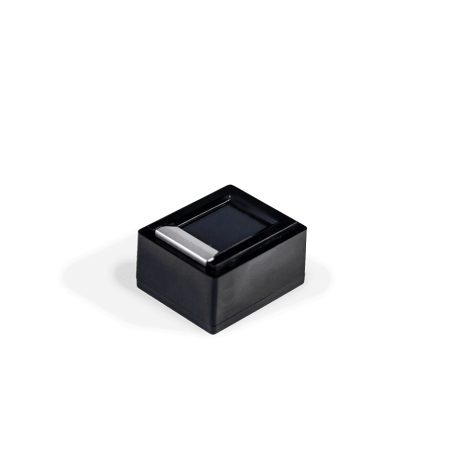

The Columbo scanner is the smallest, lightest and fastest FBI PIV FAP 30 certified fingerprint scanner in the world. Enclosed in a small housing, it provides highest quality fingerprint images. It comes with an SDK that enables integration with applications requiring certified quality images that meet the requirements of registration and verification applications common in programs based on international standards.
The scanner is highly accurate and difficult to counterfeit, providing a new alternative to unattended verification applications.

Faster - Better - Smarter
- Fast dry finger capture,
- Easy integration via SDK for all FBI-certified Integrated Biometrics products
- Resistant to extreme temperatures,
- Scanning in direct sunlight, bright and artificial light,
- Rejects common spoofing attacks,
- Does not emit bright light while scanning,
- Meets or exceeds US military strength specifications
- Low power consumption
- Eliminates consumables (silicone membranes or cleaning tape),
- Lower maintenance costs

Light Emitting Sensor Technology (LES)

Integrated Biometrics scanners use patented LES light-emitting sensor technology to deliver FBI-certified desktop and mobile fingerprint imaging in an extremely durable, lightweight scanner.

LES-based biometric solutions provide excellent image quality in both direct and indirect sunlight and are resistant to finger contaminants such as grease, oil, water, dust and chemicals.

LES technology is the only biometric technology that can meet the FBI's stringent image performance requirements in a "thin" form factor (less than 1 mm thick). Whether integrating with smartphones, tablets or other mobile solutions, LES offers the smallest and lightest forensic-grade roll scanners available on the market today, 90-95% smaller and lighter than traditional optical scanners.

OS Support & System Requirements
OS Support
- Windows Desktop Editions 7, 8, 10, 11
- Linux Kernel 4.0 or newer (32/64 bit, ARMv6, ARMv7)
- Ubuntu 18.04, 20.04 or newer
- Debian 10, 11, or newer
- Android 10, 11, 12

CPU: x86 and x64 | 2.0GHz or higher ARM | 1.0 GHz or higher
Memory: 512MB or higher

Images & Capture

Sensor Type: LES
Camera: CMOS
Resolution: 500 ppi
Grayscale: 256 grayscale dynamic range
Image Size: 400 x 500 pixels
Supported Image Formats: RAW, JPEG2000, BMP, PNG, WSQ (FBI-approved)
Encryption: N/A
FBI / Image Certifications :PIV 071006, FIPS 201, FAP 30 / Certified to Mobile ID Requirements
Speed: Min frame rate > 10FPS, slaps and rolls
API Interface: Capture single finger, multi-device / multi-thread support
Quality Scoring: NFIQ v1 supported on all OSes and NFIQ2 for Windows

Weight & Dimensions

Product Weight: < 25 grams / 0.06 lbs
Platen Size: 21.52 mm x 26.6 mm / 0.85” x 1.05”
Sensing Area: 20.32 mm x 25.4 mm / 0.8” x 1.0”
Scanner Assembly Dimensions: 40.0 mm x 42.9 mm x 8.0 mm / 1.57″ x 1.69” x 0.31”

Power & Connectors

Interface: USB 2.0 and Molex
Power Source: USB Host
USB Voltage Level: 4.4V to 5.25V

Conformance & Certifications

USB Certification: USB-IF USB.ORG
FCC/CE Conformance:
- FCC Part 15 (per ANSI C62.4:2003) Class A,
- CSA ICES-003 Class A,
- CE Emissions: EN55022:2006 Class A,
- CE Immunity EN 55024:1998/A1:2001/A2:2003,
- IEC61000-4-2
Air Discharge / Contact Discharge: In compliance with IEC 61000-4-2
Equipment Safety: IEC 60950-1
Hazardous Material: RoHS Directive 2002/95/EC
Vibration Test: Per Mil-STD-810F (Method 514.5), Category 24, Flg.514.5C-17
Compliance/Certifications:
- MOSIP L1 Compliant
- Meets TAA compliance for US customers

Temperature & Humidity

Operating Temperature: -10°C ~ +55°C / 14°F ~ 131°F
Humidity: 20~95% RH < 40°C / 104°F (Non-condensing)
Storage Temperature: -40°C ~ +80°C / -40°F ~ 176°F

Surface & Systems

Ingress Protection / Water / Dust: IP65 Sealed bezel to scanning surface
Surface Durability: MIL-C-675c 4.5010, MIL-STD-810F
Cleaning & Sanitization: For proper cleaning and disinfection of IB products
Mean-Time Between Failures (MTBF): Based on 200 full single-finger enrollments per day, the Columbo MTBF is 66 years.
