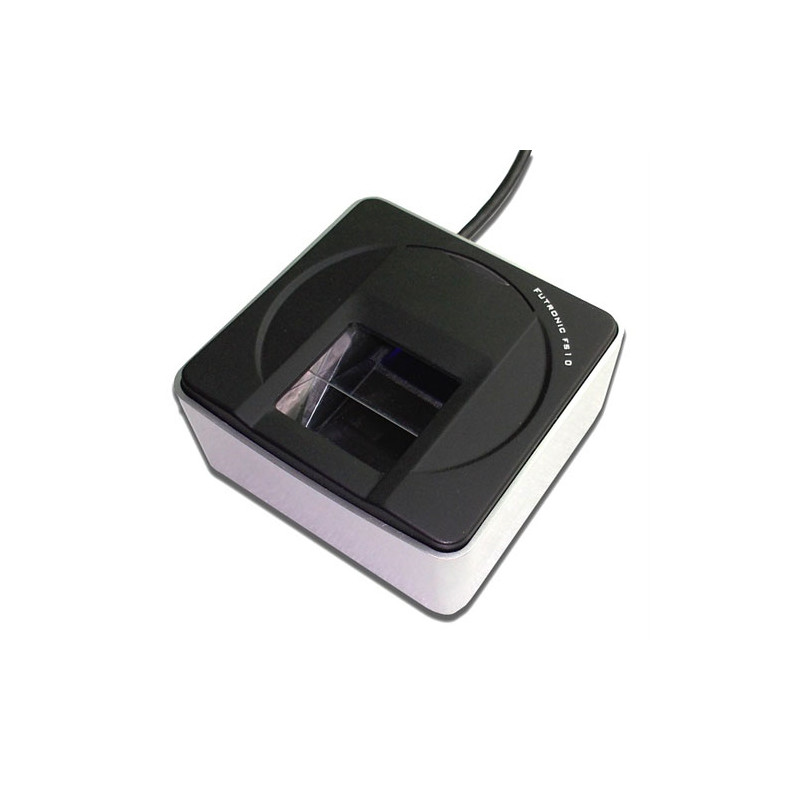

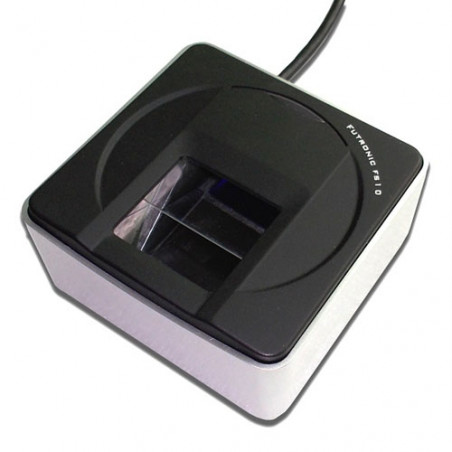

Futronic FS10

Futronic FS10 fingerprint reader:
- PIV certificate,
- has a large 1″ x 1″ plate,
- suitable for AFIS applications,
- certified by the FBI as compliant with the PIV-071006 image quality specifications,
- is on the list of US GSA FIPS 201 approved products,
- can be used in government systems and applications,
- uses infrared to capture individual flat fingerprints,
- made of durable, scratch-resistant material,
- can be used in harsh conditions,
- suitable for mobile fingerprint capture systems,

Description
Product Details

Specification
Fingerprint scanning window size : 29 x 29.5mm
Scanning area : 25.4 x 25.4mm (1″x1″)
Image resolution is 500x500 pixels, 500 DPI, 8 bit grayscale. No interpolation used
Raw fingerprint image file size is 250K bytes
Support Live Finger Detection (LFD)
USB 2.0 high speed only
Unique serial number programmed to USB Device Descriptor
With a 2M standard USB cable
Small size : 75 x 73 x 36 mm
Light weight : 200 gram
Operation temperature: -10 to +55 Degree Celsius
Relative Humidity : 0-90% non-condensing

Compliant to following standards
FIPS 201/PIV 071006 Image Quality Specification
Mobile ID FAP30
Microsoft WHQL
FCC and CE
Ingress Protection Rating: IP54(scanning window only)

Electrical characteristics
Light source: Infrared LED
Supply voltage: DC 4.5-5.5V via USB port
ESD contact - 8KV no permanent damage
ESD air discharge - 16KV no permanent damage
